Jira

Version: 5.0.10

Jira provides bug tracking, issue tracking, and project management functions.

Connect Jira with LogicHub

  1. Navigate to Automations > Integrations.
  2. Search for Jira.
  3. Click Details, then the + icon. Enter the required information in the following fields.
    • Label: Enter a connection name.
    • Reference Values: Define variables here to templatize integration connections and actions. For example, you can use https://www.{{hostname}}.com where, hostname is a variable defined in this input. For more information on how to add data, see 'Add Data' Input Type for Integrations.
    • Verify SSL: Select option to verify connecting server's SSL certificate (Default is Verify SSL Certificate).
    • Remote Agent: Run this integration using the LogicHub Remote Agent.
    • URL: URL of the Jira server.
    • User: User name to log in with.
    • Password or API Token: Password or API Token to log in with.
      • API Token is recommended. Also, only API Token will work if third-party sign-in is enabled in JIRA. For more information on how to generate an API token, click here.
  4. After you've entered all the details, click Connect.

Actions for Jira

Create Issue

This action creates a ticket with the specified details whenever the parent table has any results. The parent table's data is put into the ticket's description field.

Input Field

Choose a connection that you have previously created and then fill in the necessary information in the following input fields to complete the connection.

Input NameDescriptionRequired
ProjectSelect the Jira project to use for the new issue.Required
Title Column NameColumn name that contains the title of the issue to create.Required
Description Column NameColumn name that contains the description of the issue to create.Required
TypeSelect Issue type.Required
PrioritySelect issue priority.Required

Output

A JSON object containing multiple rows of result:

  • has_error: True/False
  • error: message/null
  • result: created ticket details

Create Issue V2

Creates a Jira issue for each row in the input table.

Input Field

Choose a connection that you have previously created and then fill in the necessary information in the following input fields to complete the connection.

Input NameDescriptionRequired
ProjectSelect the Jira project to use for the new issue.Required
Title TemplateJinja2 template for the issue title.Required
Description TemplateJinja2 template for the issue description.Required
TypeIssue type (example: Bug and Task).Required
PriorityIssue priority (example: Low, Medium, and Critical). If unselected default priority (configured in Jira) will be used.Optional
LabelsJinja2 templatized JSON array of string labels.Optional
Other FieldsJinja2 templatized JSON object of extra fields like Assignee. Refer to Get Account ID of Jira Users. For user field, emailAddress and displayName could also be used apart from the fields mentioned in the API.Optional

Output

A JSON object containing multiple rows of result:

  • has_error: True/False
  • error: message/null
  • result: created ticket details

Create Issue with Optional Fields

Creates a Jira issue for each row in the input table.

Input Field

Choose a connection that you have previously created and then fill in the necessary information in the following input fields to complete the connection.

Input NameDescriptionRequired
ProjectSelect the Jira project to use for the new issue.Required
Title TemplateJinja2 template for the issue title.Required
Description TemplateJinja2 template for the issue description.Optional
TypeIssue type (example: Bug, Task).Required
LabelsJinja2 templatized JSON array of string labels.Optional
Other FieldsJinja2 templatized JSON object of extra fields like Assignee. Refer to Get Account ID of Jira Users. For user field, emailAddress and displayName could also be used apart from the fields mentioned in the API.Optional

Output

A JSON object containing multiple rows of result:

  • has_error: True/False
  • error: message/null
  • result: created ticket details

Add Comment

Adds a comment to an existing Jira issue for each row in the input table.

Input Field

Choose a connection that you have previously created and then fill in the necessary information in the following input fields to complete the connection.

Input NameDescriptionRequired
Issue ID/Key Column NameColumn name containing the issue ID or key. The comment will be added to the specified issue.Required
Comment Body TemplateJinja2 template for the comment body.Required

Output

A JSON object containing multiple rows of result:

  • has_error: True/False
  • error: message/null

Query Issues

This action queries Jira for tickets that match the given JQL.

Input Field

Choose a connection that you have previously created and then fill in the necessary information in the following input fields to complete the connection.

Input NameDescriptionRequired
QueryJQL query, with optional variable substitution denoted by column names in double braces {{ and }}.Required
Output TypeThe action either returns one JSON per input row or one JSON per issue found or one JSON per issue found (Default: One JSON per issue found).Optional
Max number of resultsMaximum number of results to retrieve from JIRA, per query (Default is 1000 results).Optional

Output

A JSON object containing multiple rows of result:

  • has_error: True/False
  • error: message/null
  • other key fields of result

Get Issue

This action retrieves the Jira ticket for a given issue key.

Input Field

Choose a connection that you have previously created and then fill in the necessary information in the following input fields to complete the connection.

Input NameDescriptionRequired
Jira Issue ID/Key Column NameColumn name containing the issue ID or key of the Jira ticket to retrieve.Required
Download AttachmentSelect option Yes/No to download attachments. Downloading attachments may take additional time (default is No).Optional

Output

A JSON object containing multiple rows of result:

  • has_error: True/False
  • error: message/null
  • other key fields of result

Update Status

This action updates the status of a given issue key.

Input Field

Choose a connection that you have previously created and then fill in the necessary information in the following input fields to complete the connection.

Input NameDescriptionRequired
Jira Issue ID/Key Column NameColumn name containing the issue ID or key. The specified issue's status will be updated.Required
Status Column NameColumn name containing the new status for the issue.Required

Output

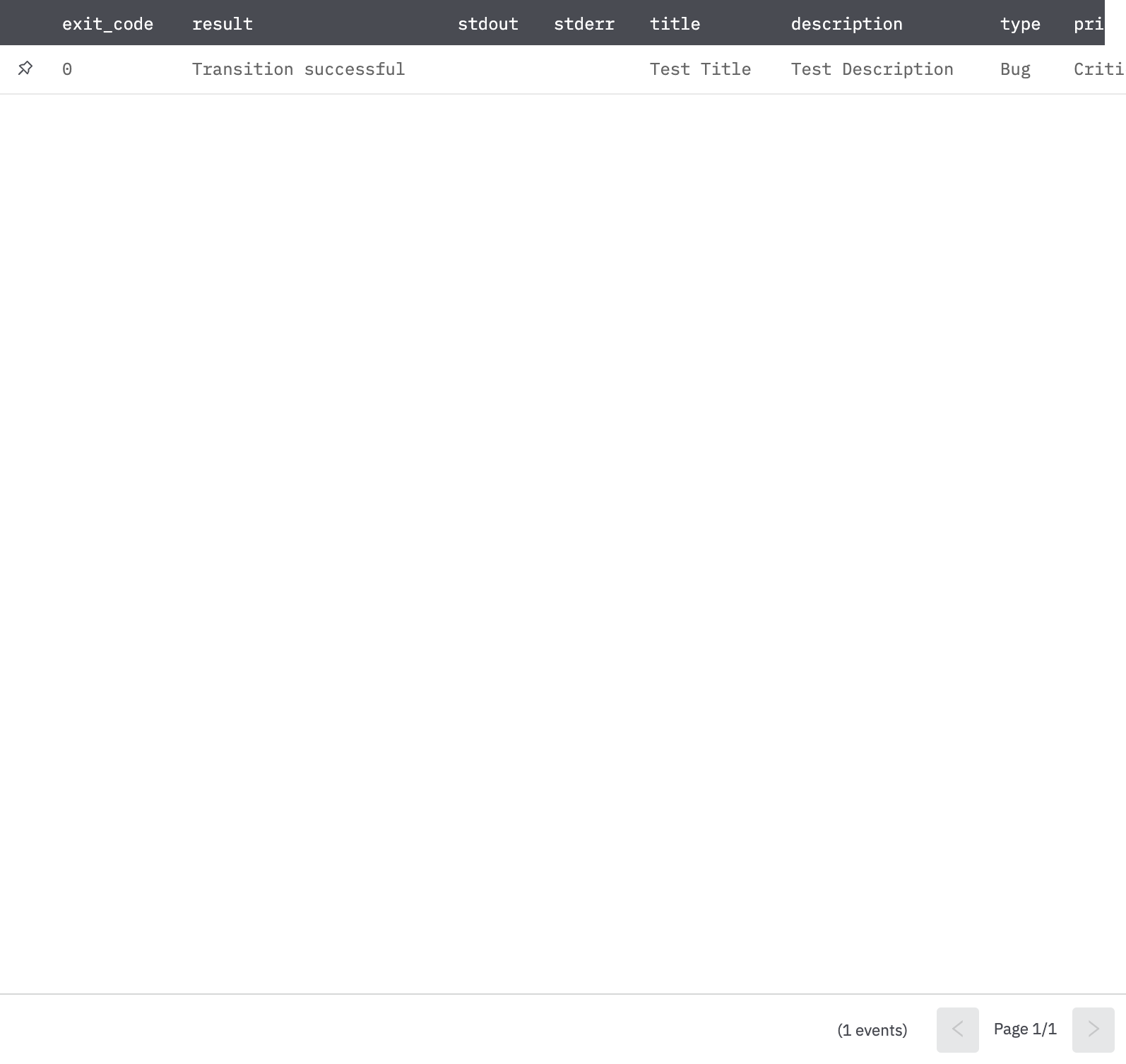

A JSON object containing result.

"data":{
"has_error":false
"result":"Transition successful"
"error":NULL
}

Update Issue

This action updates the status of a given issue key.

Input Field

Choose a connection that you have previously created and then fill in the necessary information in the following input fields to complete the connection.

Input NameDescriptionRequired
Jira Issue ID/Key Column NameColumn name containing the issue ID or key. The specified issue will be updated.Required
Assignee Column NameColumn name that contains accountID of the new assignee of the issue.Optional
Description Column NameColumn name that contains the updated description of the issue.Optional
Other FieldsJinja2 templatized JSON object of extra fields. 'assignee' and 'description' fields specified here will be ignored if they're provided above. To get accountID of users for Assignee, refer to Get Account ID of Jira Users. For user field, emailAddress and displayName could also be used apart from the fields mentioned in the API.Optional

Output

A JSON object containing multiple rows of result:

  • has_error: True/False
  • error: message/null
  • result: Updated successfully.

Upload Attachments

Upload attachment to a Jira Issue.

Input Field

Choose a connection that you have previously created and then fill in the necessary information in the following input fields to complete the connection.

Input NameDescriptionRequired
Jira Issue ID/Key Column NameColumn name containing the issue ID or key. Attachments will be added to the specified issue.Required
Attachment File IDs Column NameColumn name that contains file ids of the attachments to be attached to Jira issue.
Example: column-value: 'asdfghjklqwerty,zxcvbnmqwerty'
Required
Attachment NamesColumn that contains new names to be given to the uploaded attachments.
Example: column-value: 'triage-alerts1.csv,triage-alerts2.csv'. If not provided or the count of file-ids is more than file-names, file-id will be used as the name for the remaining files.
Optional

Output

A JSON object containing multiple rows of result:

  • has_error: True/False
  • error: message/null
  • result: Uploaded successfully.

Get Comments

Get Comments for an issue.

Input Field

Choose a connection that you have previously created and then fill in the necessary information in the following input fields to complete the connection.

Input NameDescriptionRequired
Issue ID/Key Column NameColumn name containing the issue ID or key. Comments of specified issues will be fetched.Required
Start AtPage Offset to start at (default '0').Optional
Max ResultsMax number of results on the page that should be included (default '50').Optional
Order BySpecify the field on which comments should be ordered. (Default '-created' to get the latest comments first). '-' for descending.Optional

Output

A JSON object containing multiple rows of result:

  • has_error: True/False
  • error: message/null
  • other key fields of result

Link Issues

Links an issue to another issue.

Input Field

Choose a connection that you have previously created and then fill in the necessary information in the following input fields to complete the connection.

Input NameDescriptionRequired
Issue Key Column Name (Inward)Column name containing the issue key of inward issue.Required
Issue Key Column Name (Outward)Column name containing the issue key of outward issue.Required
Issue Link TypesSelect the type of Issue-link.Required

Output

A JSON object containing multiple rows of result:

  • has_error: True/False
  • error: message/null
  • other key fields of result

Download Attachments

This action downloads the Jira attachments identified by attachment ID.

Input Field

Choose a connection that you have previously created and then fill in the necessary information in the following input fields to complete the connection.

Input NameDescriptionRequired
Jira Attachment ID Column NameColumn name containing the attachment ID to download.Required

Output

A JSON object containing multiple rows of result:

  • has_error: True/False
  • error: message/null
  • other key fields of result

Delete Attachment

This action deletes the Jira attachment identified by attachment Id.

Input Field

Choose a connection that you have previously created and then fill in the necessary information in the following input fields to complete the connection.

Input NameDescriptionRequired
Jira Attachment IdJinja-templated for the attachment ID to deleteRequired

Output

A JSON object containing multiple rows of result:

  • has_error: True/False
  • error: message/null
  • result: deleted successfully
{
    "has_error": false,
    "result": "deleted successfully",
    "error": null
}

Get Account ID of Jira Users

Jinja template to be provided in Other Fields to set Assignee:

{
  "assignee": {
    "accountId": "{{account_id_column}}"
  }
}

accountId for a user can be fetched by using Web API integration and making call a call to Jira Users Search API https://<company-subdomain>.atlassian.net/rest/api/3/users/search

Get Watchers

This action returns the list of watchers for the issue with the given key.

Input Field

Choose a connection that you have previously created and then fill in the necessary information in the following input fields to complete the connection.

Input NameDescriptionRequired
Jira Issue Id/KeyJinja-templated text containing the issue ID or key of the Jira ticketRequired

Output

JSON containing the following items:

{
  "self": "https://logic.atlassian.net/rest/api/2/issue/TEST-1234/watchers",
  "has_error": false,
  "error": null,
  "watchers": [
    {
      "displayName": "ABC",
      "self": "https://logic.atlassian.net/rest/api/2/user?accountId=61ddcasdfac00708d2383",
      "avatarUrls": {
        "24x24": "https://secure.gravatar.com/avatar/0902013a35e2d0dfasdfbc25532?d=https%3A%2F%2Favatar-management--avatars.us-west-2.prod.public.atl-paas.net%2Finitials%2FSY-3.png",
        "32x32": "https://secure.gravatar.com/avatar/0902013a35asdff189fbc25532?d=https%3A%2F%2Favatar-management--avatars.us-west-2.prod.public.atl-paas.net%2Finitials%2FSY-3.png",
        "48x48": "https://secure.gravatar.com/avatar/0902013a3asdfasd135f189fbc25532?d=https%3A%2F%2Favatar-management--avatars.us-west-2.prod.public.atl-paas.net%2Finitials%2FSY-3.png",
        "16x16": "https://secure.gravatar.com/avatar/0902013a3asdffbc25532?d=https%3A%2F%2Favatar-management--avatars.us-west-2.prod.public.atl-paas.net%2Finitials%2FSY-3.png"
      },
      "emailAddress": "[email protected]",
      "accountType": "atlassian",
      "active": true,
      "timeZone": "America/Los_Angeles",
      "accountId": "61ddasdfac00708d2383"
    },
    {
      "displayName": "QWER",
      "self": "https://logic.atlassian.net/rest/api/2/user?accountId=61ccab1c7aa7ac0070dd8302",
      "avatarUrls": {
        "24x24": "https://secure.gravatar.com/avatar/b771e9b4asdfsdfa57269457db0?d=https%3A%2F%2Favatar-management--avatars.us-west-2.prod.public.atl-paas.net%2Finitials%2FRA-6.png",
        "32x32": "https://secure.gravatar.com/avatar/b771e9b4asdfsadfed4c3a57269457db0?d=https%3A%2F%2Favatar-management--avatars.us-west-2.prod.public.atl-paas.net%2Finitials%2FRA-6.png",
        "48x48": "https://secure.gravatar.com/avatar/b771e9b4asdfasdfd4c3a57269457db0?d=https%3A%2F%2Favatar-management--avatars.us-west-2.prod.public.atl-paas.net%2Finitials%2FRA-6.png",
        "16x16": "https://secure.gravatar.com/avatar/b771e9b4asdfasdfd4c3a57269457db0?d=https%3A%2F%2Favatar-management--avatars.us-west-2.prod.public.atl-paas.net%2Finitials%2FRA-6.png"
      },
      "emailAddress": "[email protected]",
      "accountType": "atlassian",
      "active": false,
      "timeZone": "America/Los_Angeles",
      "accountId": "61casdfc0070dd8302"
    }
  ],
  "watchCount": 2,
  "isWatching": true
}

Add Watcher

This action returns the list of watchers for the issue with the given key.

Input Field

Choose a connection that you have previously created and then fill in the necessary information in the following input fields to complete the connection.

Input NameDescriptionRequired
Jira Issue Id/KeyJinja-templated text containing the issue ID or key of the Jira ticketRequired
Jira Account IdJinja-templated text containing the account IDRequired

Output

JSON containing the following items:

{
  "has_error": false,
  "result": "Added successfully",
  "error": null
}

Remove Watcher

This action returns the list of watchers for the issue with the given key.

Input Field

Choose a connection that you have previously created and then fill in the necessary information in the following input fields to complete the connection.

Input NameDescriptionRequired
Jira Issue Id/KeyJinja-templated text containing the issue ID or key of the Jira ticketRequired
Jira Account IdJinja-templated text containing the account IDRequired

Output

JSON containing the following items:

{
  "has_error": false,
  "result": "Removed successfully",
  "error": null
}

Release Notes

  • v5.0.10 - Bug Fix for correlation of results when using multithread.
  • v5.0.0 - Updated architecture to support IO via filesystem
  • v4.4.1 - Added 3 actions: Get Watchers, Add Watcher and Remove Watcher.
  • v4.3.1 - Bug fix : Truncate text being sent to the description field to the allowable limit in Create issue, Create issue v2, Create issue with optional field and Update issue actions.
  • v4.3.0 - Changes field type of query field in Query Issues action
  • v4.2.0 - Modified Update Status action for returning data in Json
  • v4.1.1 - Added Delete Attachment action.
  • v4.1.2 - Modified Query Issues action for getting any number Issues.
  • v4.1.3 - Modified Query Issues action for valid response when getting 0 results in response.

© Devo Technology Inc. All Rights Reserved.
