Execute Playbooks with Webhook

As an alternative to setting up playbooks to run on a schedule, you can schedule a playbook to run when an external application, such as Splunk, makes a POST request to a Webhook URL.
You can also supply additional data in a request body when making requests to the Webhook address. The playbook then has access to the supplied data through the loadEventsFromExecutionContext() operator.

NOTE: By default, stream executions are limited to 5 requests in each 5-minute interval. If more requests are generated in that timeframe, they are queued and could be coalesced into fewer requests. You can reconfigure the limits, but if you do, be aware of the additional load that can result from increased numbers of stream executions. If Webhook requests fire too rapidly, they are subject to a rate limit and coalescing process.

Set Up a Stream for a Webhook Trigger

To set up a playbook for a Webhook trigger,

  1. Edit an existing stream.

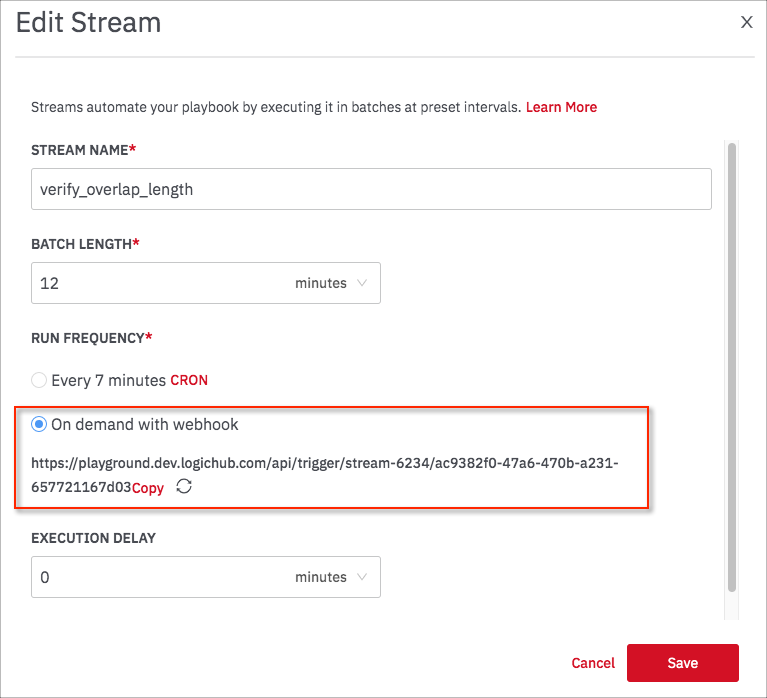

  2. On the Edit Stream page, provide a stream name and batch length, and enable the On Demand toggle.
  3. The Webhook URL is displayed. Copy the URL and save it.
  4. Click Submit.

The Webhook URL is now available for use. To execute the stream, a POST call must be made to the Webhook URL. The following is an example curl command that includes a POST call to the Webhook URL.

curl -X POST \
  "https:/xyz.logichub.com/api/trigger/stream-5784/f0e58257-b358-4986-ae4c-38d39b7d5fe3" \
  -H "content-type: application/json" \
  -d '{}'

The command output includes a request ID.

{
  "requestId": "7aa3c4a7-d21e-4ab4-8233-740e1a367252"
}

The request ID can be used to fetch the state of the stream trigger using the following API call.

curl -X GET \
https://xyz.logichub.com/api/trigger/stream/request/27f5f7ee-74ca-42e4-a226-81ecc0580fe2 \
  -H 'Content-Type: application/json' \
  -H 'X-Auth-Token: <api token>'

The following is an example response when the stream is scheduled and batch is created.

{
  "result": {
    "requestId": "27f5f7ee-74ca-42e4-a226-81ecc0580fe2",
    "expiryAt": 1569149800083,
    "createdAt": 1569148300083,
    "batchId":"batch-1822643",
    "state": "scheduled"
  }
}

The following is an example response when the stream is queued.

{
  "result": {
    "requestId": "27f5f7ee-74ca-42e4-a226-81ecc0580fe2",
    "expiryAt": 1569149800083,
    "createdAt": 1569148300083,
    "state": "queued"
  }
}

If the stream cannot be scheduled due to expiration limit, the stream is timed out (timedout). In this case, the client needs to retry to trigger the stream again.

{
  "result": {
    "requestId": "27f5f7ee-74ca-42e4-a226-81ecc0580fe2",
    "expiryAt": 1569149800083,
    "createdAt": 1569148300083,
    "state": "timedout"
  }
}

When the stream is scheduled, the following API call can be used to see the stream executions status. Use the batchId from the previous stream request api response.

curl -X GET \
'https://xyz.logichub.com/api/batch/batch-1822939/results?pageSize=10&after=0' \
  -H 'Content-Type: application/json' \
  -H 'X-Auth-Token: <api token>'

The following is a sample response.

{
   "result":{
      "status":"executing",
      "totalSize":0,
      "data":[
      ]
   }
}

When stream execution results are available, the status transitions to ready. The following is an example with the ready status.

curl -X GET 'https://xyz.logichub.com/api/batch/batch-1822939/results?pageSize=10&after=0'
-H 'Content-Type: application/json'
-H 'X-Auth-Token: <api token>'
{
   "result":{
      "status":"ready",
      "totalSize":30,
      "data":[
         {
            "id":"correlation-eyJub2RlS2V5Ijp7ImZsb3dJZCI6ImZsb3ctNDUwNDQiLCJub2RlSWQiOiIwMTg5MWUzNS0yMzM5LTRhZTctOGY5Mi05NmYzN2RhYjQ4MTIifSwiZmxvd1ZlcnNpb24iOnsidmVyc2lvbiI6NTd9LCJsaHViSWQiOiIxIiwiaW50ZXJ2YWwiOnsiZnJvbSI6MTU2OTE1MzExNTgxOCwidG8iOjE1NjkxNTQ5MTgyMjh9fQ==",
            "schema":{
               "columns":[
                  {
                     "name":"lhub_id",
                     "dataType":"string",
                     "visible":false,
                     "semanticType":"other"
                  },
                  {
                     "name":"exit_code",
                     "dataType":"int",
                     "visible":true,
                     "semanticType":"other"
                  },
                  {
                     "name":"result",
                     "dataType":"string",
                     "visible":true,
                     "semanticType":"other"
                  },
                  {
                     "name":"stdout",
                     "dataType":"string",
                     "visible":true,
                     "semanticType":"other"
                  },
                  {
                     "name":"stderr",
                     "dataType":"string",
                     "visible":true,
                     "semanticType":"other"
                  },
                  {
                     "name":"1",
                     "dataType":"int",
                     "visible":true,
                     "semanticType":"other"
                  },
                  {
                     "name":"lhub_page_num",
                     "dataType":"bigint",
                     "visible":false,
                     "semanticType":"other"
                  }
               ]
            },
            "columns":{
               "stdout":"",
               "result":"{\"error\": null, \"has_error\": false, \"result\": {\"customer_id\": \"ALFKI\"}}",
               "exit_code":"0",
               "lhub_page_num":"0",
               "1":"1",
               "stderr":"",
               "lhub_id":"TableNameWithLhubId(`queryCustomers`,1)"
            }
         }
      ]
   }
}

To obtain the remaining results, fetch the next pages.

curl -X GET 'https://xyz.logichub.com/api/batch/batch-1822939/results?pageSize=10&after=10'
-H 'Content-Type: application/json'
-H 'X-Auth-Token: <api token>'

The following table lists all of the status values.

Status

Description

scheduled

A batch is scheduled for execution.

queued

A batch is queued for execution but has not started executing yet.

executing

The playbook is executing for this batch.

ready

Correlations have been computed and results are available.

error

An error occurred during any step.

skipped

An error occurred during any step.

expired-or-invalid-batch

batch results are garbage collected or removed or the batch doesn’t exist.

Query Parameters to the Webhook

The optional intervalStart and intervalEnd parameters provide the time range for stream execution. The following rules apply to the time range settings.

  • intervalStart and intervalEnd times must be given in Unix epoch time in milliseconds.
  • If both a start and end time are provided, both are used.
  • If only a start time is provided, the end time is the start time plus the batch Interval time.
  • If only the end time is provided, the start time is the end time minus the batch Interval time.
  • If no start or end time is provided, the start time is the current time minus the batch Interval time and the end time is the current time.

curl -XPOST --header "Content-Type: application/json" -d '{}' https://xyz.logichub.com/api/trigger/stream-5234/717e995a-6fdd-42b7-a2c2-ce3e9e613d63?intervalStart=1570468818221&intervalEnd=1570468848221

Supplying Additional Data to the Webhook

To supply additional data to the Webhook, edit the playbook. Insert a step with the operator called loadEventsFromExecutionContext().

The operator’s argument is a parent table that is used with Webhook execution and provides a body JSON with additional data. The JSON code from the parent table can help test the playbook while authoring without needing to set up a running stream. It can also provide additional data to the playbook if the playbook itself does not contain all of the desired data.
When the playbook runs using Webhook functionality, the output of loadEventsFromExecutionContext() contains the body parameters that are sent using the Webhook. The parameters are formatted as follows with the resulting table as shown below.

curl -XPOST --header "Content-Type: application/json" -d '{"rows": [{"key1": "peter_test95", "splunk_notable_id":"splunkid", "lhub_id": "10"}, {"key1": "vj_test", "lhub_id": "11"}]}' https://xyz.logichub.com/api/trigger/stream-5234/717e995a-6fdd-42b7-a2c2-ce3e9e613d63

If the provided body contains the key rows with the values as an array of key-value pairs, then the loadEventsFromExecutionContext() operator parses the data and formats it into a table as follows.
If the provided body isn’t in this format, the loadEventsFromExecutionContext() operator loads the provided body contents as a string in its raw structure.

{
   "rows":[
      {
         "key1":"peter_test95",
         "splunk_notable_id":"splunkid",
         "lhub_id":"10"
      },
}
